| Aichi Loop Railway 2000 series | |
|---|---|

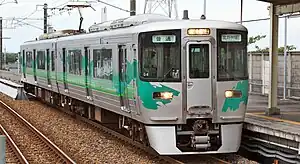

 Set G4 in original livery, August 2009 | |
| In service | March 2003 – present |
| Manufacturer | Nippon Sharyo |
| Constructed | 2002–2009 |
| Number built | 40 vehicles (20 sets) |
| Number in service | 40 vehicles (20 sets) |
| Formation | 2 cars per trainset |
| Fleet numbers | G1-14, G31-33, G51-52 |
| Operators | Aichi Loop Railway |
| Depots | Kitano-Masuzuka |
| Lines served | Aichi Loop Line |
| Specifications | |
| Car body construction | Stainless steel |
| Car length | 20,100 mm (65 ft 11 in) |
| Width | 2,978 mm (9 ft 9 in) |
| Height | 4,020 mm (13 ft 2 in) |
| Doors | 3 pairs per side |
| Maximum speed | 110 km/h (68 mph) |
| Acceleration | 2.6 km/(h⋅s) (1.6 mph/s) |
| Electric system(s) | 1,500 V DC (overhead wire) |
| Current collector(s) | Pantograph |
| Bogies | ND731 (motored) ND731T (trailer) |
| Track gauge | 1,067 mm (3 ft 6 in) |
The Aichi Loop Railway 2000 series (愛知環状鉄道2000系) is a 2-car electric multiple unit (EMU) train type operated by the Japanese third sector railway operator Aichi Loop Railway on the Aichi Loop Line since March 2003.[1]
Formations
As of 1 April 2012, the fleet consists of 20 two-car sets formed as shown below, with one motored (Mc) car and one trailer (Tc) car.[2]
| Designation | Tc | Mc |
|---|---|---|
| Numbering | 2200 | 2100 |
| Weight (t) | 37.1 | 31.2 |
| Capacity (total/seated) | 146/56 | 140/51 |
- Sets G31-G33 have cars numbered in the 213x and 223x series.
- Sets G51-G52 have cars numbered in the 215x and 225x series.
- The Mc cars are equipped with one single-arm pantograph (sets G8-G11 have two pantographs).[2]
Interior
Passenger accommodation consists of fixed facing 4-seat bays with bench seating by the doorways.[1] Sets G51 and G52 have longitudinal seating throughout.[2] The Tc cars have a universal access toilet.[1] The G30 sets were originally configured to allow tables to be installed, and included internal speakers for use with karaoke equipment on special event services,[1] but these features were subsequently removed.[2]
History
The first four sets, G1-G2 and G31-G32, were delivered to allow driver training between January and March 2003.[1]
From December 2009, the original sets were gradually repainted into the corporate livery with blue bodyside stripes, and the seat moquette was also changed from green to blue.[3]
