| CFL Class 2200 | |
|---|---|

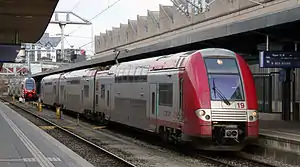

 A CFL Class 2200. | |
 Second class interior | |
| In service | 2005 - Present |
| Manufacturer | Alstom |
| Family name | Coradia Duplex |
| Constructed | 2004-2006, 2009-2010 |
| Number built | 22 trainsets (66 vehicles) |
| Number in service | 22 |
| Formation | Z1+Z3+Z5 |
| Fleet numbers | 2201-2223 |
| Capacity | 339 |
| Operators | CFL |
| Specifications | |
| Train length | 81.1 m (266 ft 1 in) |
| Width | 2.806 m (9 ft 2 in) |
| Height | 4.30 m (14 ft 1 in) |
| Doors | 12 |
| Articulated sections | 3 |
| Maximum speed | 160 km/h (99 mph) |
| Weight | 193 t |
| Power output | 2,340 kilowatts (3,140 hp) |
| Electric system(s) | 1.5 kV DC/25 kV AC overhead lines |
| Current collector(s) | pantograph |
| Safety system(s) | ETCS 1 |
| Track gauge | 1,435 mm (4 ft 8+1⁄2 in) standard gauge |
CFL Class 2200 is a series of electric multiple units built by Alstom for CFL. The trains are similar to the French SNCF Class Z 26500.
In 2006, EMU 2207 collided head-on with a freight train in the Zoufftgen train collision, resulting in 6 deaths. Damaged parts of the train were removed and replaced by new sections. This train was renumbered into 2223.
Interior
Balcony and Second class section

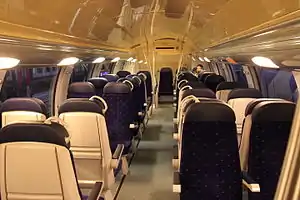

Second class seats
First class
References
External links
- Series 2200 on rail.lu (in Luxembourgish)
Wikimedia Commons has media related to CFL Class 2200.
