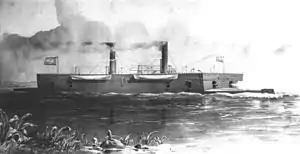

A drawing of Cabral
Class overview
NameCabral
BuildersJ. and G. Rennie, Millwall, London
Preceded byMariz e Barros class
Succeeded bySete de Setembro
Built1864–66
In service1866–85
Completed2
Scrapped2
General characteristics
Class and typeArmored corvette
Displacement1,033 long tons (1,050 t)
Length160 ft (48.8 m)
Beam35 ft 6 in (10.8 m)
Draft11.75–12.1 ft (3.6–3.7 m)
Installed power750 ihp (560 kW)
Propulsion2 shafts; 2 steam engines
Speed10.5 knots (19.4 km/h; 12.1 mph)
Armament
ArmorBelt: 3–4.5 in (76–114 mm)

The Cabral-class ironclads were a pair of iron-hulled, armored corvettes originally ordered by Paraguay in 1864, but were sold to Brazil when Paraguay defaulted on the payments. Configured as central-battery ironclads, they served during the 1864–70 Paraguayan War between Brazil, Argentina and Uruguay against Paraguay.

Design and description

The ships were 160 feet (48.8 m) long, had a beam of 35 feet 6 inches (10.8 m) and drafts of 11.75–12.1 feet (3.6–3.7 m). They displaced 1,033 long tons (1,050 t). The Cabral class had a pair of steam engines, each driving one propeller. The engines produced a total of 750 indicated horsepower (560 kW) and gave the ships a maximum speed of 10.5 knots (19.4 km/h; 12.1 mph). Their crew consisted of 125 officers and enlisted men.[1]

Cabral was armed with two 70-pounder Whitworth rifled muzzle-loading guns and two smoothbore 68-pounder guns, while Colombo had four 120-pounder Whitworth guns. The ships had a complete waterline belt of wrought iron that ranged in thickness from 114 millimeters (4.5 in) amidships to 76 millimeters (3.0 in) at the ends of the ship.[1]

Ships

Paraguayan name Brazilian name Namesake Builder[1] Laid down Launched Completed[1] Fate
Cabral Pedro Álvares Cabral J. and G. Rennie, Millwall, London 1866 Stricken, 1885
Colombo Christopher Columbus

See also

Footnotes

  1. 1 2 3 4 Lyon, p. 406

References

  • Davis, William H. (1977). "Question 1/77". Warship International. XIV (2): 161–172. ISSN 0043-0374.
  • Lyon, Hugh (1979). "Brazil". In Chesneau, Roger & Kolesnik, Eugene M. (eds.). Conway's All the World's Fighting Ships 1860–1905. London: Conway Maritime Press. ISBN 0-85177-133-5.
