Sikorsky S-17

S-17

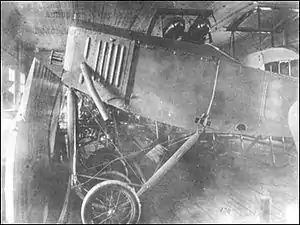

	Sikorsky S-17 circa 1915
Role	Reconnaissance
National origin	Russian Empire
Manufacturer	Russian Baltic Railroad Car Works
Designer	Igor Sikorsky
First flight	1915
Number built	2

The Sikorsky S-17 was a Russian single engine aircraft built at the Russian Baltic Railroad Car Works in Petrograd while Igor Sikorsky was the chief engineer of the aircraft manufacturing division.

Design and development

The S-17 was a two seat reconnaissance biplane based on the S-10 and powered by a Sunbeam Crusader V-8 water-cooled engine rated at 150 hp (112 kW).^[1]^[2]

Specifications

Data from Russian Aviation Museum^[1]

General characteristics

Crew: Two
Length: 24 ft 7 in (7.5 m)
Upper wingspan: 45 ft 3 in (13.8 m)
Lower wingspan: 41 ft 0 in (12.5 m)
Wing area: 468 sq ft (43.5 m²)
Empty weight: 1,863 lb (845 kg)
Gross weight: 2,624 lb (1,190 kg)
Powerplant: 1 × Sunbeam Crusader V-8, side-valve, water-cooled, piston engine, 150 hp (110 kW)
Propellers: 2-bladed

Performance

Wing loading: 5.6 lb/sq ft (27.4 kg/m²) max load

References

1 2 "S-17". ram-home.com. 4 September 1997. Retrieved 1 May 2017.
↑ "The Russian Years". www.sikorskyarchives.com. Retrieved 4 May 2017.
