Solaris Trollino
Solaris Trollino 12 4th generation in Vilnius
Overview
ManufacturerSolaris Bus & Coach
Also calledŠkoda 26Tr, Škoda 27Tr, Škoda 28Tr, Škoda-Solaris 24M
Production2002-present
AssemblyBolechowo-Osiedle, Poland
Body and chassis
ClassSingle-deck trolleybus
Doors2-5 doors
Floor typeLow floor
Powertrain
Power output160–320 kW (214.6–429.1 hp)
Dimensions
Length12,000–18,750 mm (472.4–738.2 in)
Width2,550 mm (100.4 in)
Height3,450 mm (135.8 in)
Curb weight11,400–18,500 kg (25,132.7–40,785.5 lb)

Solaris Trollino is a series of low-floor trolleybuses designed for public transport, produced since 1999 by the Polish company Solaris Bus & Coach.[1] The power regulation electronics and traction motors are delivered by other companies, such as Škoda Electric, Kiepe Electric, Medcom or Cegelec.[1]

The first prototype was produced in 2001 and ran the first races on the Gdynia road network.[2]

Description and models

There are four different length variants (the number indicates length in meters):

  • Solaris Trollino 12 (also sold as Škoda 26Tr Solaris)

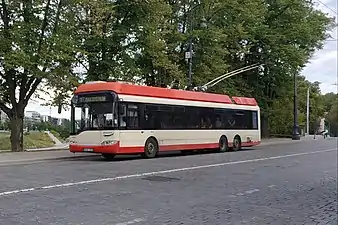

  • Solaris Trollino 15 (also sold as Škoda 28Tr Solaris) - no longer in production
  • Solaris Trollino 18 (articulated, also sold as Škoda 27Tr Solaris)

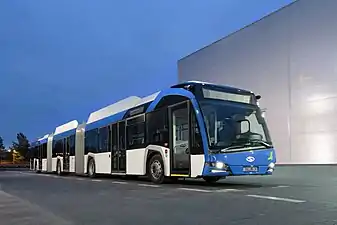

  • Solaris Trollino 24 (bi-articulated, also sold as Škoda-Solaris 24M)
Type Number manufactured Powertrain options
Solaris Trollino 12 / Škoda 26Tr Solaris 182 / 302[3] Škoda 160 kW, Kiepe 160 kW, MEDCOM 175 kW[1]
Solaris Trollino 15 / Škoda 28Tr Solaris 49 / 35[3] Škoda 250 kW[3]
Solaris Trollino 18 / Škoda 27Tr Solaris 114 / 260[3] Škoda 250 kW, Kiepe 2x160 kW, MEDCOM 250 kW[1]
Solaris Trollino 24 / Škoda-Solaris 24M 1 / 36 Kiepe 2x160 kW[1]

The trolleybuses can be fully dependent on wires, or they can be equipped with supercapacitors, batteries, fuel cells or diesel generators.
