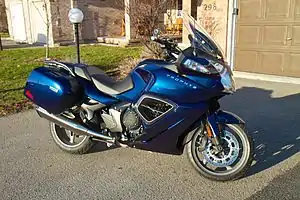

 2013 Pacific Blue Triumph Trophy SE | |
| Manufacturer | Triumph |
|---|---|
| Production | 2012–2017 |
| Assembly | Hinckley, England |
| Predecessor | Triumph Trophy 1200 |
| Class | Touring motorcycle |
| Engine | 1,215 cc (74.1 cu in) Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder |
| Bore / stroke | 85 mm × 71.4 mm (3.35 in × 2.81 in) |
| Transmission | 6-speed shaft drive |
| Frame type | Aluminium beam twin-spar |
| Suspension | Front - WP 43 mm upside down forks, manually adjustable rebound damping, with 130 mm travel. SE - WP 43 mm upside down forks, electronically adjustable rebound damping (sport/normal/comfort) with 127 mm travel. Rear - WP monoshock with remote oil reservoir, manually adjustable hydraulic preload, manually adjustable rebound damping, 120 mm rear wheel travel. (SE electronically adjustable hydraulic preload, electronically adjustable rebound damping. |
| Brakes | Combined braking system / ABS Front: Twin 320 mm discs, Nissin 4-piston callipers Rear: Single 282 mm disc, Nissin 2-piston calliper |
| Tyres | Front: 120/70 ZR17 Rear: 190/55 ZR17 |
| Rake, trail | 27.0º / 119 mm (4.7 in) |
| Wheelbase | 1,542 mm (60.7 in) |
| Dimensions | L: 2,235 mm (88.0 in) W: 975 mm (38.4 in) H: 1,555 mm (61.2 in) |
| Seat height | 800–820 mm (31–32 in), 770–790 mm (30–31 in) with low seat |
| Weight | 301 kg (664 lb) (wet) |
| Fuel capacity | 26 L (5.7 imp gal; 6.9 US gal) |
| Oil capacity | 4 L (4.2 US qt) |
The Triumph Trophy is a touring motorcycle produced by Triumph Motorcycles Ltd from 2012 to 2017.
The motorcycle features a 1,215 cc (74.1 cu in) liquid-cooled, 12-valve, straight-three engine,[1] which is mated to a six-speed gearbox and shaft drive. The engine is also used on its dual-sport sibling, the Tiger Explorer,[2] although on the Trophy it produces slightly less power and has a taller sixth gear, more suitable for the touring proposal of this motorcycle.[3] The base model will be complemented by the SE, which features extra equipment such as electronically adjustable suspension, a Bluetooth audio system, and a tyre-pressure monitoring system.[2] The SE will be the only model sold in the United States, Canada, Australia and Brazil.[2]
